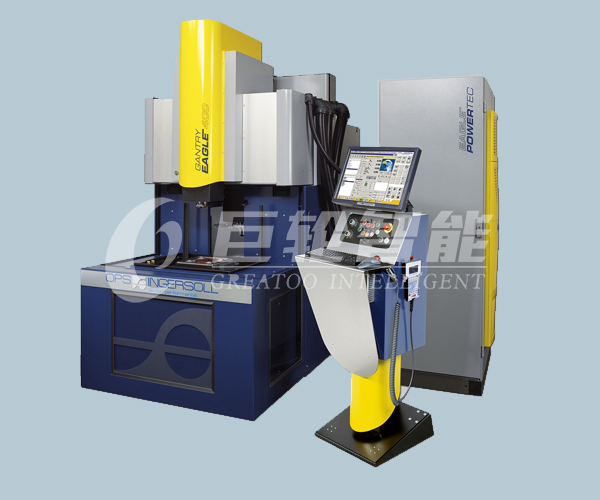

机床/Machine tool
|
机床重量/Weight of machine tool
|
3500kg
|
电源重量/Power supply weight
|
640kg
|
电源功率/Power supply
|
16KVA
|
继电/Relay
|
32A
|
电压/频率/Voltage / frequency
|
400/50
|
|
事情槽/Working groove
|
类型/Type
|
整体升降/Integral lifting
|
事情槽内部尺寸（长x宽x高）/Internal size of working groove (long x width x height)
|
650x500x340mm
|
最大液面高度可编程/自动/Maximum height of the liquid level can be programmed / automatic
|
300mm
|
|
事情头部/Working head
|
最大工件托盘重量/Maximum weight of workpiece
|
100kg
|
事情台到装置版距离最小/最大/Working table to install version distance min / Max
|
135/535mm
|
|
C轴/C axis
|
转速（可调理）/Speed (adjustable)
|
1-20min
|
最小指令值/Minimum instruction
|
0,001°
|
最大手动电极交流重量/Maximum manual electrode exchange weight
|
50kg
|
最大自动电极交流重量/Maximum automatic electrode exchange weight
|
15kg
|
最大运动惯量/Maximum motion inertia
|
0,4kg/㎡
|
扭矩/Torque
|
-Nm
|
|
事情台/workbench
|
事情台尺寸（长x宽）able size (length x width)
|
550x470mm
|
最大工件重量/Maximum weight of workpiece
|
500kg
|
|
行程/Trip
|
X/Y/Z在加工槽内的行程/X/Y/Z stroke in the processing slot
|
420x300x400mm
|
Y（电极交流和装卸时行程）/Y (electrode exchange and loading and u
|
580mm
|
|
控制系统/Control system
|
PC-NC对话/PC-NC dialogue
|
2x32bit
|
驱动类型/Drive type
|
数字交流伺服电机/Digital AC servo motor
|
XYZ轴移动速率/XYZ axis movement speed
|
Max5000mm/min
|
最大高速抬刀速率/Maximum high speed lift
|
18000mm/min
|
|
事情液箱/Working liquid box
|
滤芯类型/Type of filter element
|
筒（内置）/Cylinder (built in)
|
过滤面积/Filtration area
|
16㎡
|
事情液箱总容量/Total tank capacity
|
320ltr
|
|
电极交流系统/Electrode exchange system
|
类型/Type
|
旋转盘/Rotating disk
|
电极库（可�。�/Electrode Bank (optional)
|
20（30）
|
团结电极库作为选配/Combined electrode bank as an option
|
|
允许电极重量/Allowable electrode weight
|
|
-简单电极/Single electrode
|
15kg
|
-总体重量/Total weight
|
60kg
|
|
电源/Power Supply
|
类型/Type
|
脉冲形状自顺应控制/Adaptive pulse shape control
|
最大事情电流(选配)/Maximum operating current（optional)
|
60（110）A
|
|
特殊特点/Additional features
|
自动中央润滑/Automatic central lubrication
|
标准设置/Standard configuration
|
冷却系统、功率/Cooling system, power
|
3.9KW
|
CO2灭火装置（D1D14497）灭火剂容量/Capacity of CO2 fire extinguishing equipment (D1D14497)
|
6kg
|
